Product datasheet

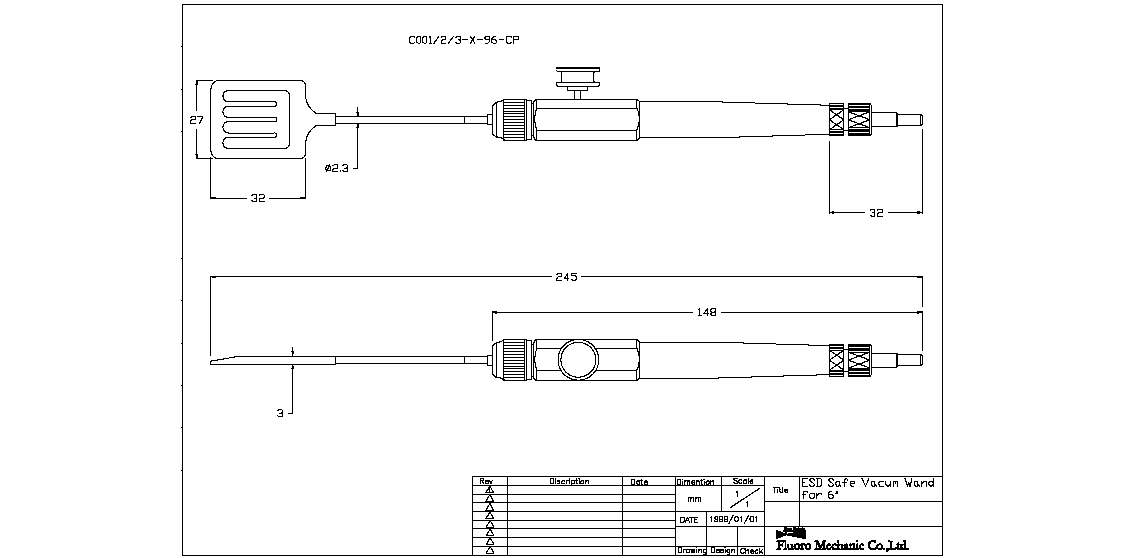

C002-X-96-CP

ESD safe vacuum wand for up to 6 inch (150 mm) wafers, normally open, swivel


£180.00

$239.00    €239.00

Add to Cart

Please register or login to buy this product.

Complete vacuum wand including tip for wafer handling. ESD safe conductive nylon body. Normally open push-button valve (press to release the wafer). Vacuum is automatically switched off when placed in stand 658 or 659. The tip can be rotated, and swivelled up to 30°, and locked. Suitable for up to 6 inch (150 mm) wafer handling. With conductive PEEK tip. Wand body and tip available separately. The vacuum tube connector allows push-on connection to any flexible tubing from 2.5 mm to 4 mm ID. The tube connector has a quick connection feature that allows wands to be interchanged rapidly.

  • Normally open push-button valve (press to release the wafer).
  • A resistance value of 106 to 108 ohms provides optimum static protection.
  • Tip may be swivelled up to 30° and locked.
  • Gross weight including packaging: 70 g.


ModelC002-X-96-CP
OperationNormally open push-button valve (press to release the wafer)
Length245 mm
Net weight23 g
