Product datasheet

C002-Y-98-CP

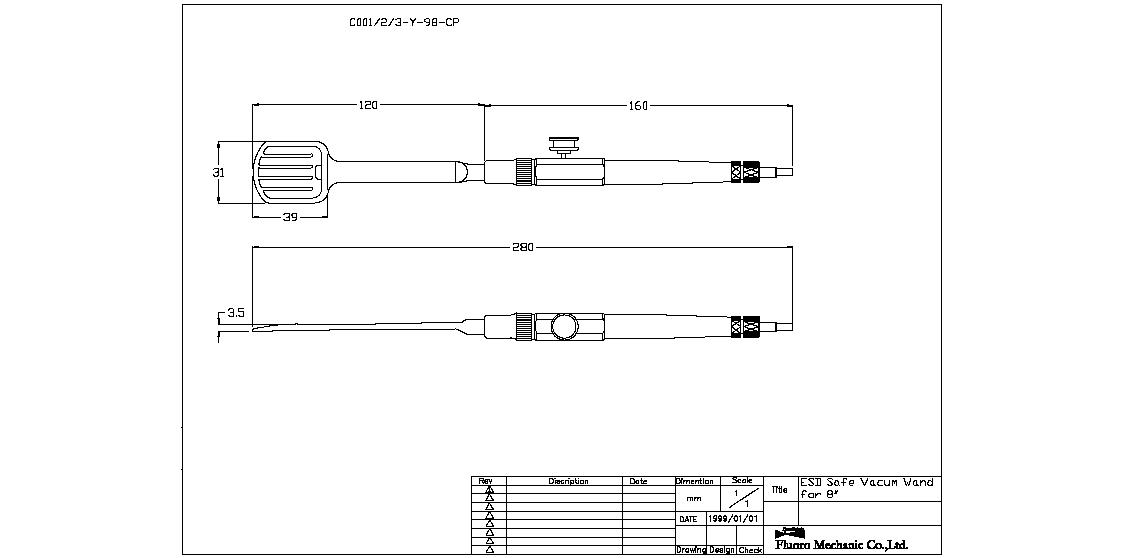

ESD safe vacuum wand for up to 8 inch (200 mm) wafers, normally open, extended


£186.00

$248.00    €248.00

Add to Cart

Please register or login to buy this product.

Complete vacuum wand including tip for wafer handling. ESD safe conductive nylon body. Normally open push-button valve (press to release the wafer). Vacuum is automatically switched off when placed in stand 658 or 659. The tip is securely fixed to the wand. Suitable for up to 8 inch (200 mm) wafer handling. With conductive PEEK tip. Wand body and tip available separately. The vacuum tube connector allows push-on connection to any flexible tubing from 2.5 mm to 4 mm ID. The tube connector has a quick connection feature that allows wands to be interchanged rapidly.

  • Normally open push-button valve (press to release the wafer).
  • A resistance value of 106 to 108 ohms provides optimum static protection.
  • Extended length tip, 128 mm long.
  • Gross weight including packaging: 95 g.
  • Material: Tip: conductive PEEK; body: conductive nylon.


ModelC002-Y-98-CP
OperationNormally open push-button valve (press to release the wafer)
Length280 mm
Net weight27 g
